| 品牌：ACPhotonics | 是否进口：否 | 加工定制：是 |
| 型号：OADM | 外形尺寸：80.0x50.0x6.0mmmm | 产品特性：光分插 |

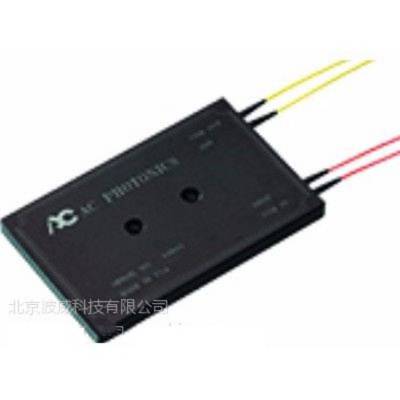

产品简介：
ACPhotonics的粗波分复用（CWDM）利用薄膜涂覆技术和非焊剂金属接合微光学包装专有设计。它提供了低插入损耗，高信道隔离，宽的通带，低温敏感性和环氧自由光路。
性能参数
Parameter | Specifications | ||
Add | Drop | ||
Operating Wavelength | Full Band (FB): 1270nm to 1610nm; | ||
Center Wavelength | 1270nm, 1290nm, …., 1610nm or 1271nm, 1291nm, ….1611nm | ||
Center Wavelength Accuracy | ± 0.5nm | ||
Channel Spacing | 20GHz | ||
Channel Passband (@-0.5dB bandwidth) | ≥ 13nm | ||
Insertion Loss | Add / Drop Ch. | ≤ 0.6dB | ≤ 0.6dB |
Express Ch. | ≤ 0.6dB | ≤ 0.6dB | |
Add / Drop Channel Ripple | ≤ 0.3dB | ≤ 0.3dB | |
***lation@Add/Drop Channel | Adjacent | N/A | ≥ 30dB |
Non-adjacent | N/A | ≥ 40dB | |
Express Channel ***lation | ≥ 25dB | ||
Insertion Loss Temperature Sensitivity | ≤ 0.003dB/°C | ||
Wavelength Temperature Shifting | ≤ 0.002nm/°C | ||
Polarization Dependent Loss | ≤ 0.10dB | ||
Polarization Mode Dispersion | ≤ 0.10ps | ||
Directivity | ≥ 50dB | ||
Return Loss | ≥ 45dB | ||
Optical Power | 300mW | ||
Operating Temperature | 0 to +70°C | ||
Storage Temperature | -40 to +85°C | ||
Package Dimensions | L80.0nm x W50.0nm x H6.0nm | ||
